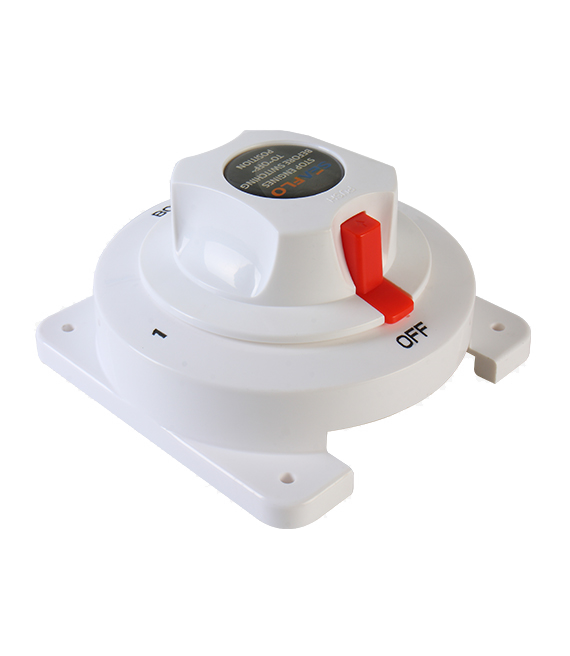

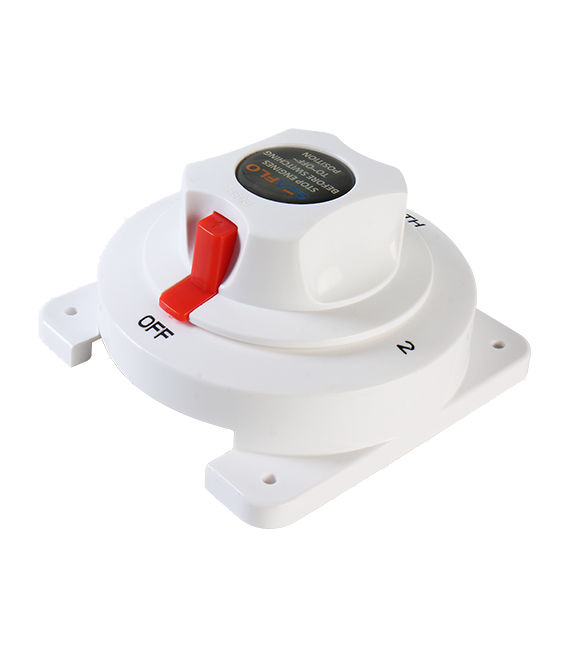

The SEAFLO Battery Selector Switch enables users to utilize one battery for ignition and one battery for optional electronic equipment. In times of need, both batteries can be coupled by switching to the (BOTH) option. Additionally, the Switch is characterized by its compact size, streamlined design, and impressive durability. Battery Selector Switch – allowing the user to pick between batteries for starting and charging, or operating them both in parallel.

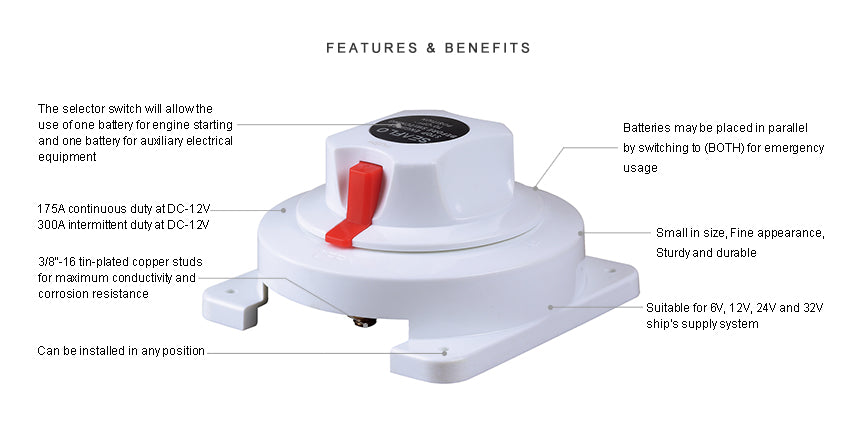

Feature
Allows the use of one battery for engine starting and one battery for auxiliary electrical equipment.
Batteries can be placed in parallel by switching to (BOTH) for emergency usage.
Compact size with a fine appearance, providing a sleek and attractive look.
Sturdy and durable construction ensures long-lasting performance.

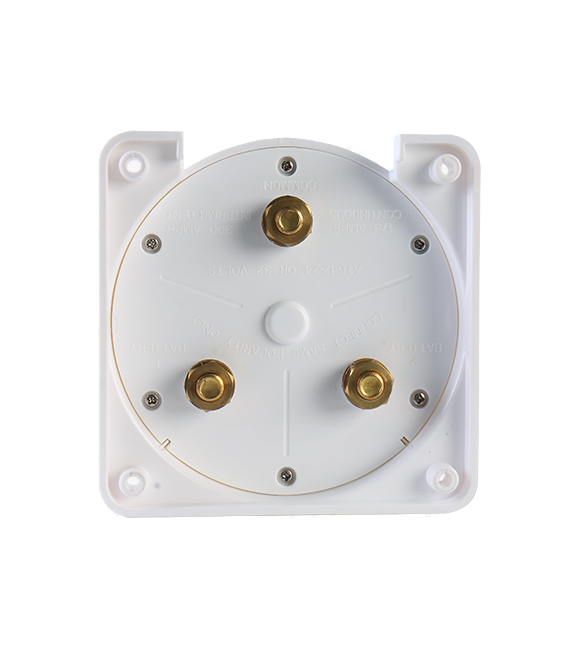

Features 3/8’’-16 tin-plated copper studs for maximum conductivity and corrosion resistance.
Can be installed in any position, offering flexibility in mounting options.
Capable of continuous duty at 175A and intermittent duty at 300A at DC-12V.
Suitable for use with 6V, 12V, 24V, and 32V ship’s supply systems.
Innovative electromagnetic design enhances performance and efficiency.
Standard Configurations
Max. Volt: 6-12-24-32 V
Amp Draw: 175A
Max Amp Draw: 300A
Switch Position: 3
Packing Size: 140x140x85 mm
N.W. / G.W.: 0.20/0.30 kg
Shipping Information
Unit Pump Weight: 1.05 lbs (0.48 kg)

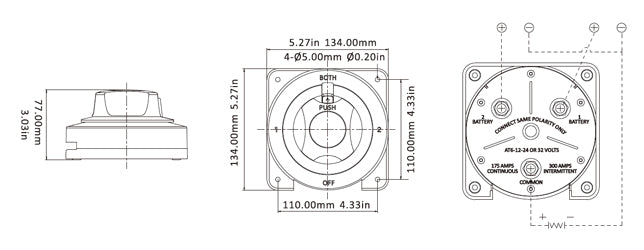

Unit Size (L x W x H): 5.51" x 5.51" x 3.27" (14 x 14 x 8.3 cm)
