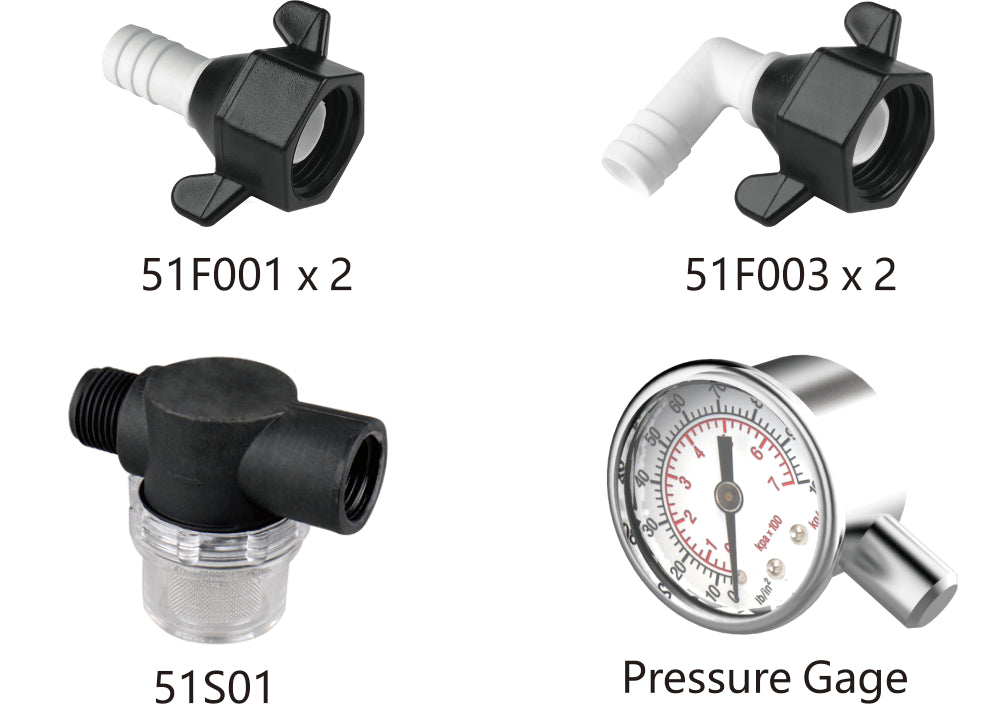

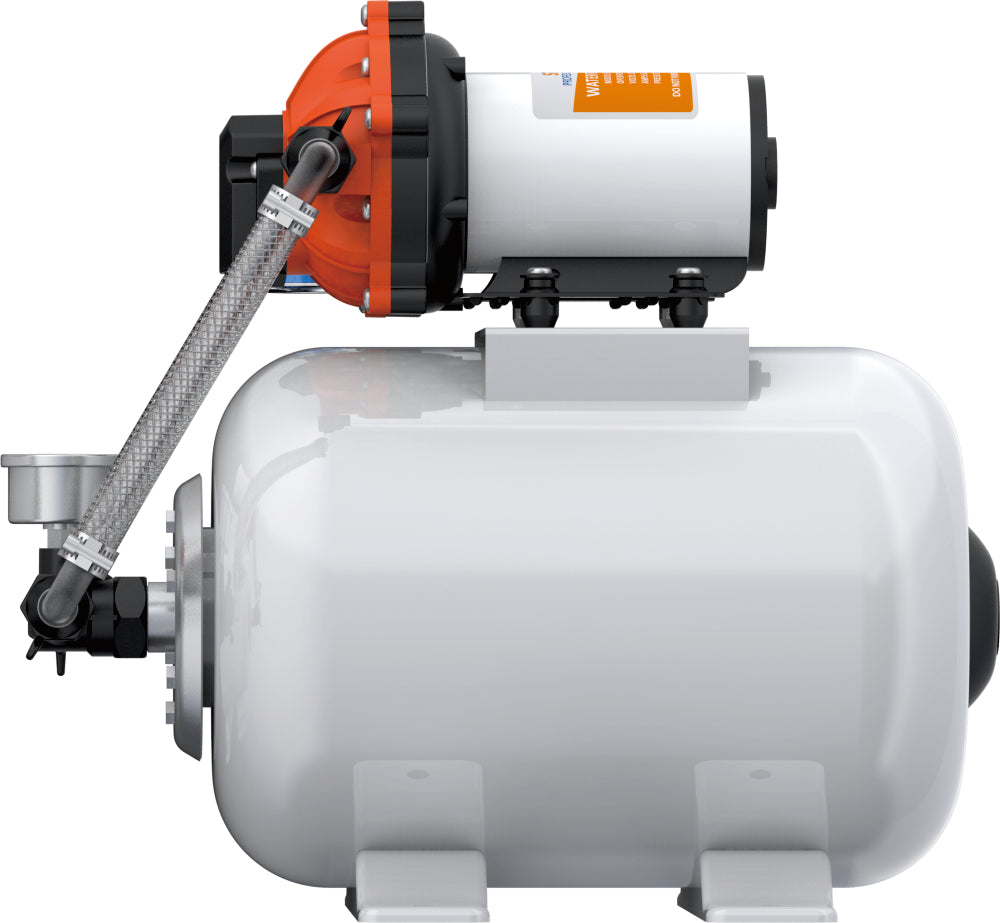

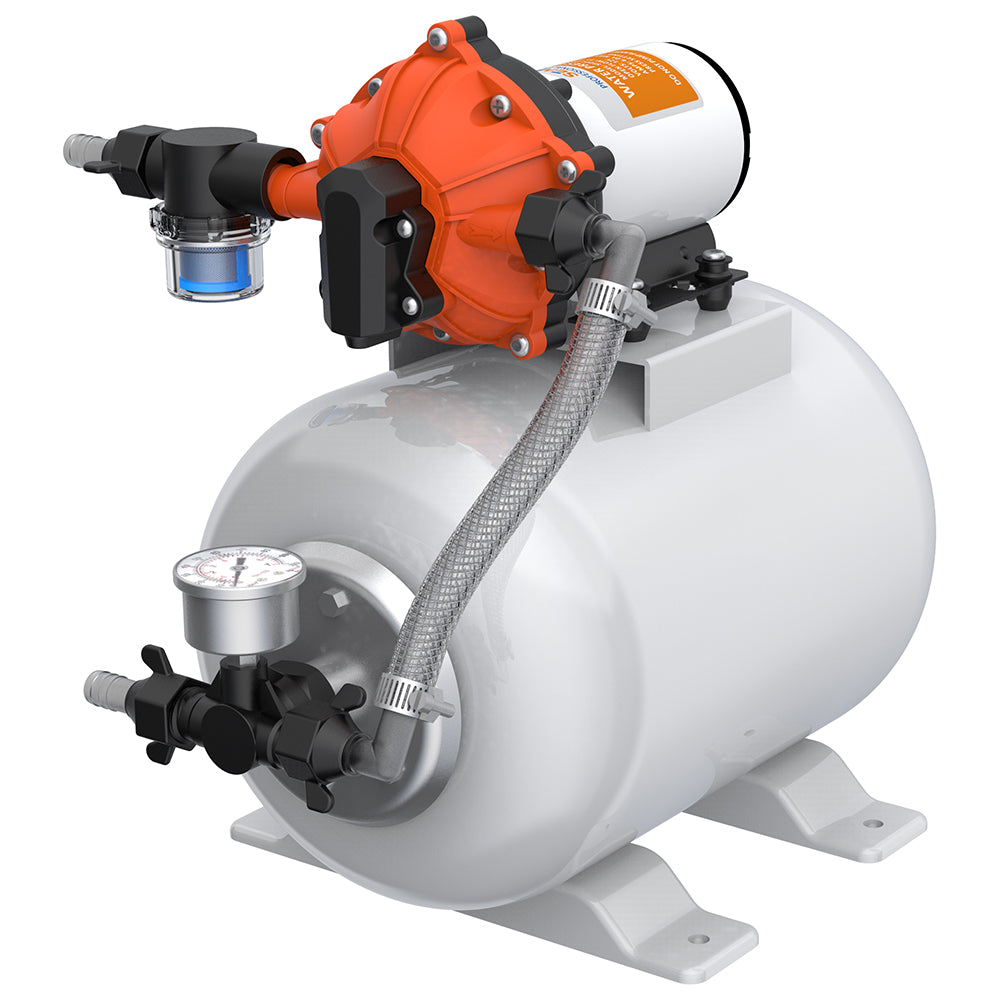

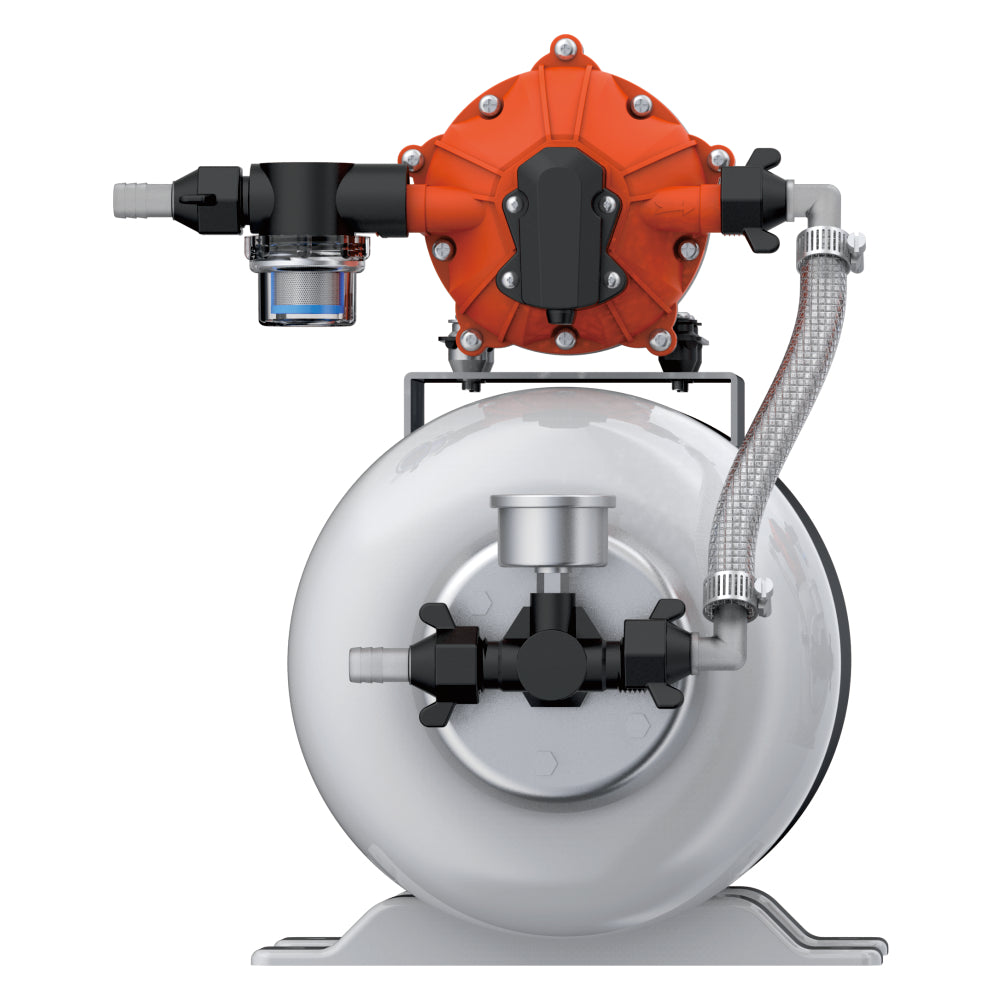

This comprehensive pressure system is designed for easy installation by both experienced trade professionals and novice DIYers. It includes a 5-chamber diaphragm pump, strainer, and an accumulator with a pre-pressurized tank with fast and easy electrical connections mounted on a rubber board. The system can power 3 or more 1/2" (13mm) points of discharge.

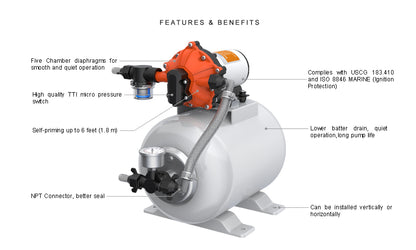

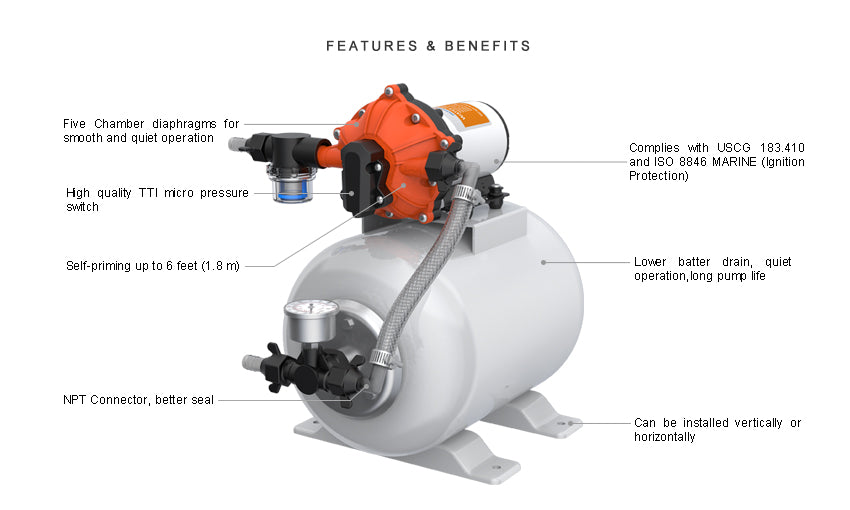

Feature
Smoother flow, resulting in quieter water systems.
Longer pump life and lower battery drain for improved efficiency.
Self-priming capability up to 6 feet (1.8m).
Five chamber diaphragms for smooth and quiet operation.
Versatile installation options: can be installed vertically or horizontally.
Maintenance-free potable water quality accumulator tank.
Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection) standards.
16 AWG, 4.5" long leads for convenient wiring.
Standard Configurations
Tank Volume: 8L
Voltage: 12V
Control Type: Switch

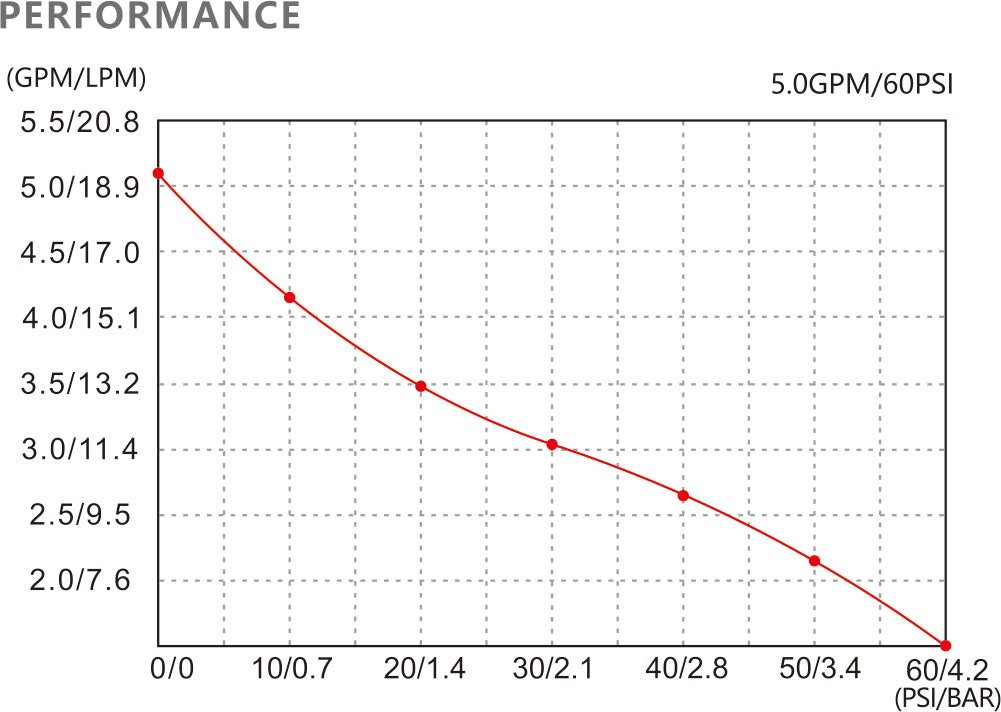

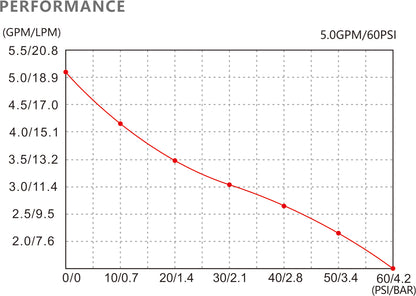

Open Flow: 5.0 GPM / 18.9 LPM
Pressure On: 20 PSI / 1.4 BAR
Pressure Off: 60 PSI / 4.2 BAR
Max Draw: 17.0A
Ports: 1/2" barb
Wire Connections: 2-Pin/Leads
Shipping Information
Unit Pump Weight: 11.68 lbs (5.3 kg)

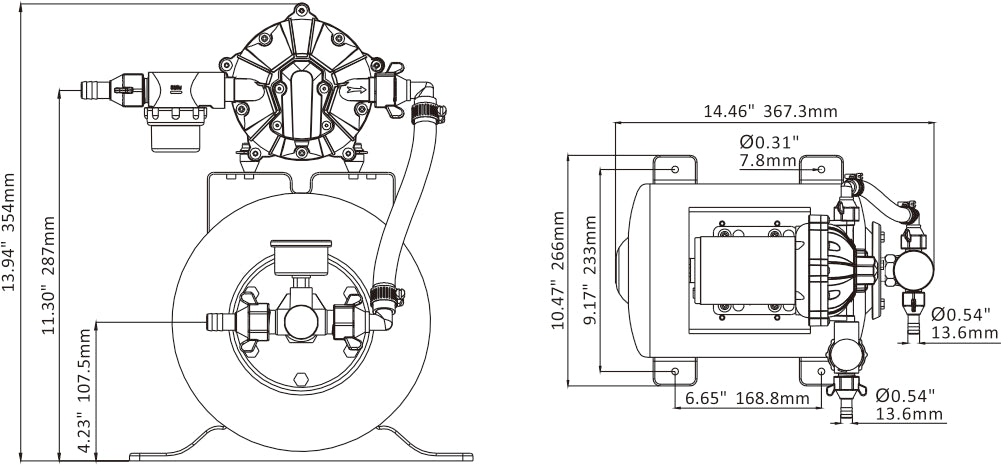

Selling Unit Size (L x W x H): 16.61" x 11.30" x 16.14" (42.2 x 28.7 x 41 cm)
