SEAFLO 31 Series DC Diaphragm Pump 12V 1.8GPM/7.0LPM

SEAFLO 31 Series DC Diaphragm Pump 12V 1.8GPM/7.0LPM

SKU:SFDP1-018-080-31

Regular price $300.00 AUD
Regular price Sale price $300.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

The 31-Series is a continuous-duty, on-demand positive displacement pump offering dependable performance for moderate water flow and high-pressure applications. With up to 1.8 gallons per minute capacity and the ability to self-prime up to 6 vertical feet, this 3-chamber diaphragm pump can even function with no water present without sustaining damage. Additionally, it features multi outlet ports for 1-2 3/8” (10 mm) connections at one time, as well as a built-in pressure switch that turns the pump on or off automatically as the fixture is used. Installing, servicing, and winterizing these pumps are straightforward tasks.

Feature

  • 16AWG, 4.5" long Leads.
  • Adjustable pressure switch.
  • Continuous Duty and Run dry safe.
  • Self priming capability.
  • Continuous duty operation.
  • 2 Year Warranty.
  • Industry Standard mounting pattern.
  • Meets or exceeds RoHS, SGS, and ISO standards.

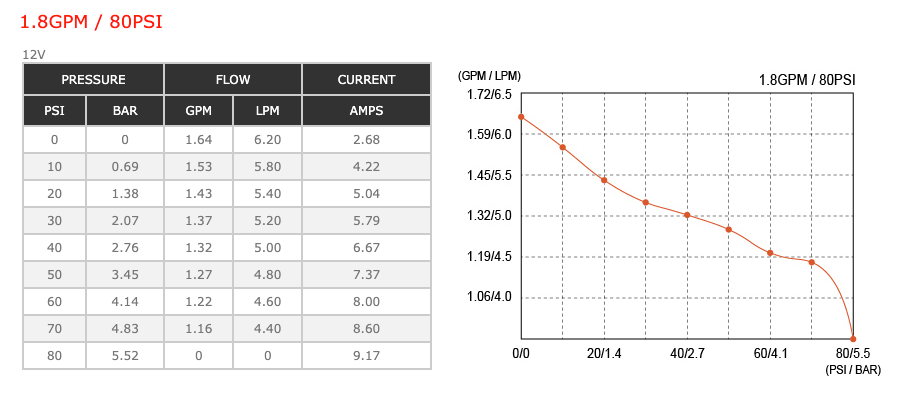

Standard Configurations

  • Model: SFDP1-018-080-31
  • Voltage: 12V
  • Open Flow: 1.8 GPM / 7.0 LPM
  • Control Type: Switch
  • Max Draw: 9.0 A
  • Shut-off Pressure: 80 PSI / 5.5 BAR
  • Valves: EPDM
  • Diaphragm: Santoprene
  • Ports: 3/8"-18 FNPT
  • Wire Connections: 2-Pin/Leads
