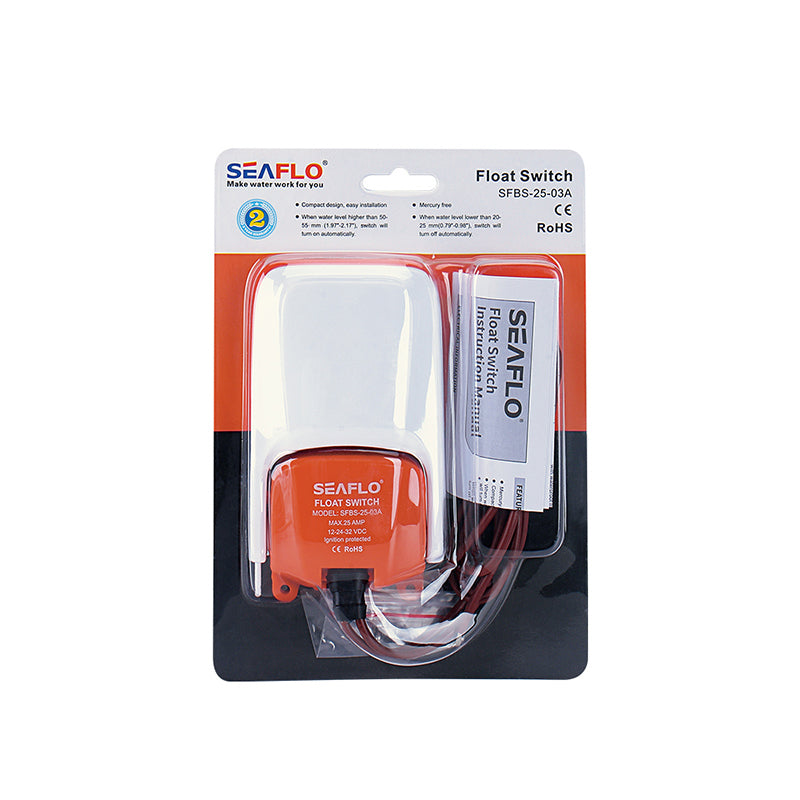

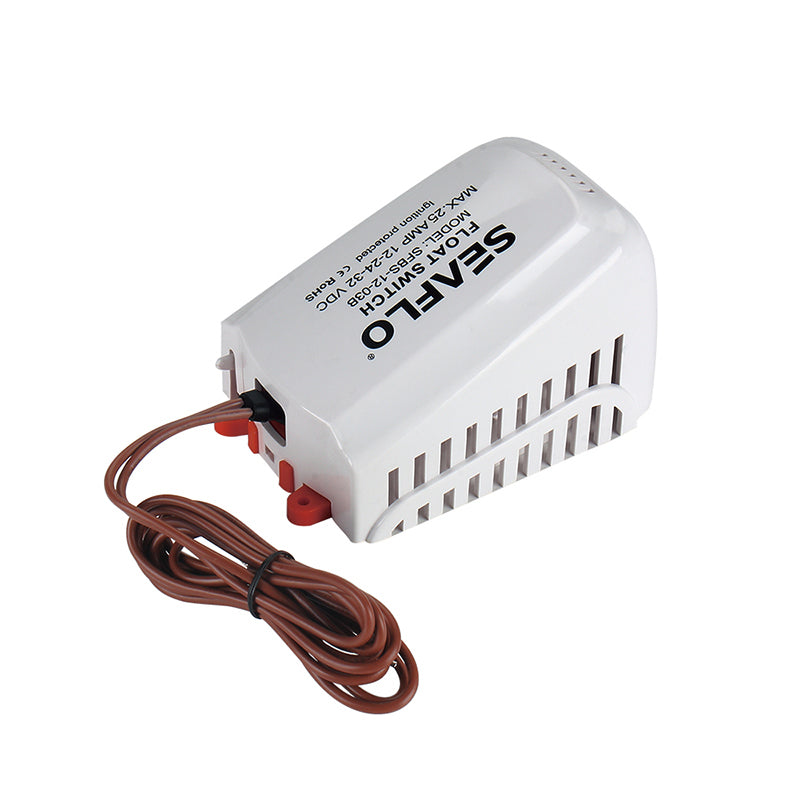

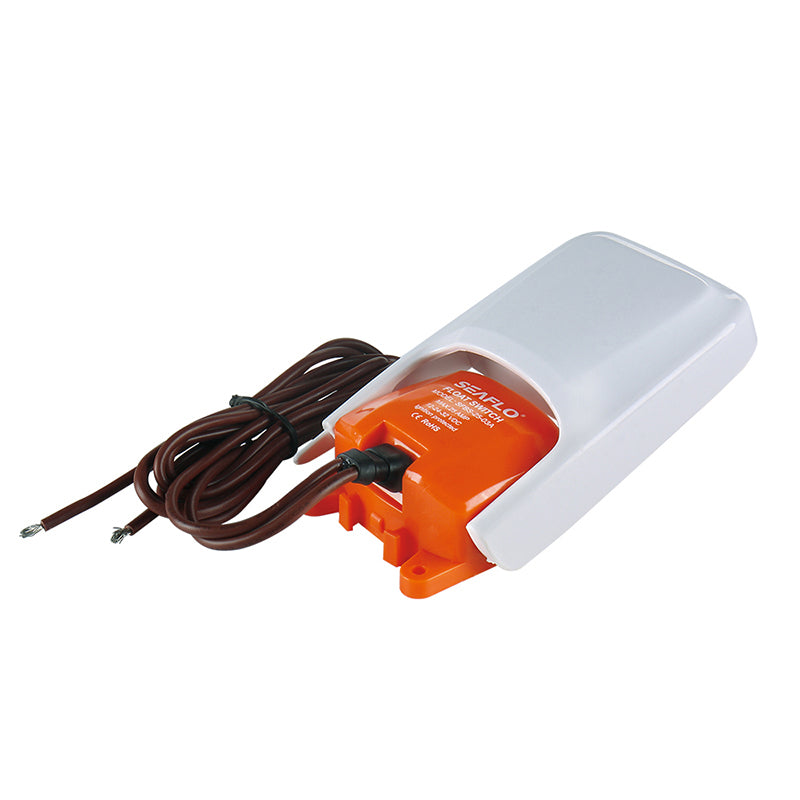

The SEAFLO 03 Series Float Switch can draw up to 25 amps and is constructed using ultrasonic welding to form a robust, leak-proof seal. The switch comes with or without a filter housing, and is designed for use in both fresh and saltwater. With its ability to draw up to 25 amps and its ultrasonic welding for a strong seal, the SEAFLO 03 Series Float Switch is perfect for use in any water, whether it's fresh or saltwater. And with the option to add a filter housing, it's built to keep out any unwanted debris.

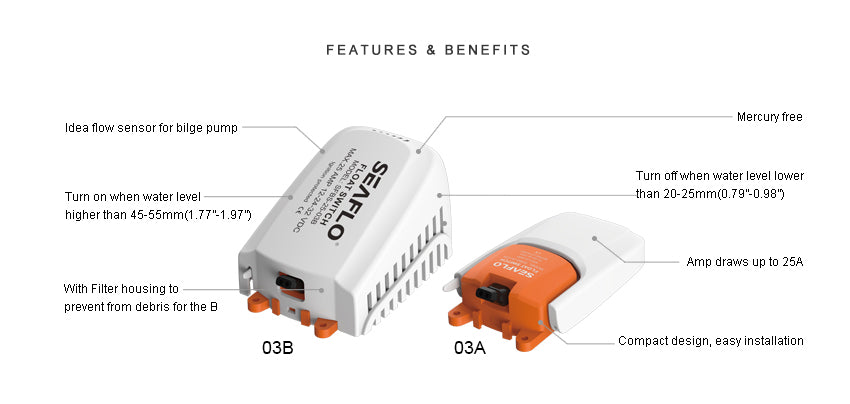

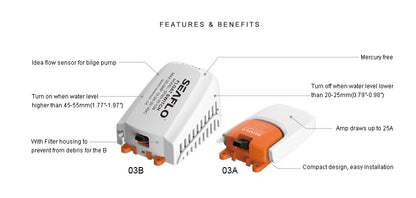

Feature
Amp draws up to 25A
Shells made of high-quality ABS material, with internal metal contacts for reliable start/stop.
Heavy-duty flow switch designed for tough applications; environmentally responsible.
Equipped with a filter housing to prevent debris from entering the system.
Turns on when water level is higher than 45-55mm (1.77"-1.97").
Turns off when water level is lower than 20-25mm (0.79"-0.98").
STANDARD PUMP CONFIGURATIONS
Max Amps (12V): 25A
Filter Housing: Yes
Wire Lead: 1 meter
Wire Gauge Size: 14AWG
Net Weight: 190g
Shipping Information
Unit Pump Weight: 0.374 lbs (0.17 kg)
Selling Unit Size (L x W x H): 19.88" x 15.75" x 10.63" (50.5 x 40 x 27 cm)
